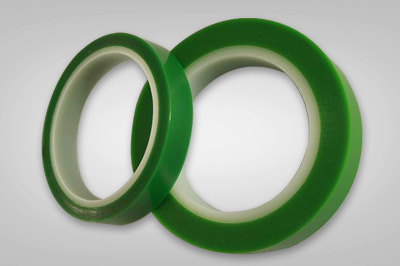

polyester film backing with silicone-based adhesive. It is chemical resistant and temperature resistant. It can be removed easily with no residue left on substrate.PET is suitable for splicing and masking silicon surface.
Feature :
-Good chemical resistant
-Durable up to 200°c
-No residual after removal
Application :
1.Splicing and holding silicon-coated surfaces
2.Used for printed circuit board gold finger plating application
3.Suitable for powder coating
Technical Data :
.
| Property |
Unit |
Avg Test value |
Test method |
| Backing |
- |
PET film |
- |
| Gule |
- |
Silicon Base |
- |
| Total Thickness |
- |
0.07mm (2.8mil) |
ASTM D-1000 |
| Adhension to steel |
kg/25mm |
0.50↑ |
ASTM D-1000 |
| Tensile Streanth |
kg/25mm |
9↑ |
ASTM D-1000 |
| Elongation |
(%) |
70↑ |
ASTM D-1000 |
| Heat Resistance |
(⟩) |
200 * 2hrs |
- |
| Solvent Resistance |
(30min|) |
PASS |
- |
|
