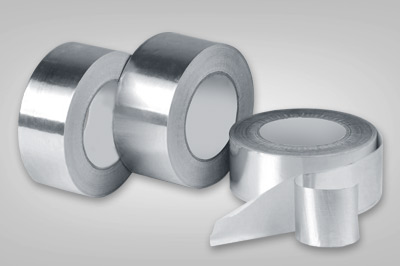

Aluminium Foil Tape

Aluminium Foil Tapes are conformable, conductors and heat reflective. Can be used for high temperature/cold temperature applications, EMI/RFI shielding, ducting and thermal spray masking. We can also do linerless aluminium foil tape on special request.

Application:

these are used for grounding of electrical equipment. Owing to their flawless quality, these are used for duct sealing of pipes in chemical plants, refrigeration industries, metal punching and reflective radiant heat.

Technical Characteristics: 30 micron with Liner

	Type of Testing	Typical Value	Test Method
1	Foil Thickness	30 micron	IS:8402
2	Total Thickness	52 micron	IS:8402
3	Type of Adhesive	Acrylic	N / A
4	Tensile Strength	5 Kgf/25mm/width	ASTMD-1000
5	Elongation	4%	ASTMD-1000
6	Adhesion to Steel	1.1 Kgf/25mm/width	ASTMD-1000
7	Temperature Resistance	60°C	IS:8402
8	Release Paper	Silicon release paper

Technical Characteristics: 50 micron with Liner

	Type of Testing	Typical Value	Test Method
1	Foil Thickness	50 micron	IS:8402
2	Total Thickness	90 micron	IS:8402
3	Type of Adhesive	Acrylic (s)	N / A
4	Tensile Strength	7.5 Kgf/25mm/width	ASTMD-1000
5	Elongation	4.5%	ASTMD-1000
6	Adhesion to Steel	1200 Kgf/25mm/width	ASTMD-1000
7	Temperature Resistance	120°C	IS:8402
8	Release Paper	Silicon release paper
9	Anchorage	No transfer of adhesive	IS:7809
